The Essential Guide to FTTH cable Production Line

Here’s a complete overview of the FTTH cable production line. Within this comprehensive article, we will examine fiber optic cables and their indispensable role in allowing high-speed data transmission. As the demand for faster and more reliable internet connectivity continues to grow, understanding the intricacies of FTTH cable production becomes essential. From the basics of cable infrastructure to the step-by-step manufacturing process, this guide will provide you with valuable insights into the production of Fiber cable sheathing line.

If you’re just starting out in the industry or want to improve your understanding, this guide is for you. This guide will delve into the essential components of FTTH cable systems, the function of optical fibers in FTTH technology, and how raw materials are turned into top-quality fiber optic cables. Moreover, we will examine design considerations, stranding techniques, buffering and jacketing processes, and the efficient working of the FTTH cable production line.

Keep reading to learn about the advanced technologies that are changing FTTH cable manufacturing, along with the significance of testing and quality assurance in guaranteeing the reliability and durability of fiber optic cables. The final steps of packaging and distribution will also be covered, ensuring the FTTH cable production line runs smoothly from beginning to end.

Main Points:

  • Providing high-speed data transmission is a key function of the FTTH cable production line.
  • The fundamentals of FTTH cable infrastructure and its key components are crucial to understand.
  • The FTTH cable production process, which goes from silica to fiber, involves fiber drawing, coating application, and testing.
  • Designing configurations and layouts that meet specific network requirements can optimize performance.
  • Stranding techniques and central strength members add support and protection to the fiber.

Fundamentals of FTTH cable Production

To grasp how FTTH cables are produced, a clear understanding of the cable infrastructure, main components, and the function of optical fibers in FTTH technology is necessary.

An Overview of the FTTH cable Infrastructure

The network of cables, connectors, and distribution points that facilitates data transmission in fiber-to-the-home (FTTH) systems is known as the FTTH cable infrastructure. Serving as the core of high-speed internet connectivity, it facilitates uninterrupted data transfer between the network of the provider and the end user’s site.

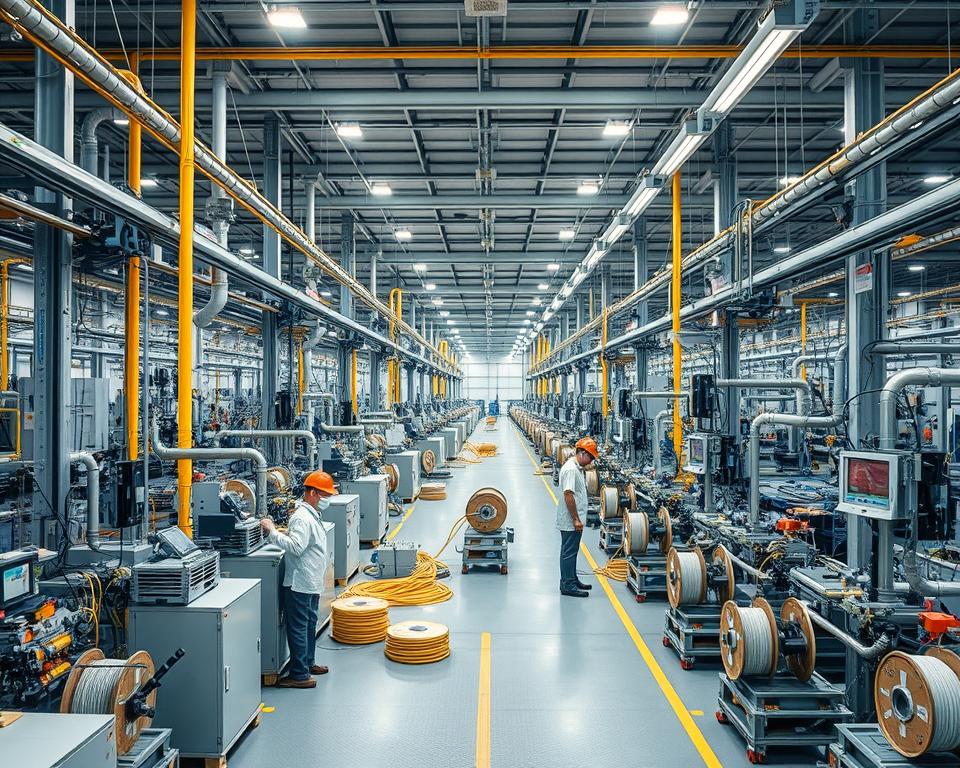

B1409A42 Aedb 481E 8Aff 113952870Cf5

Important Components of FTTH cable Systems

Working together, several key components in FTTH cable systems ensure the smooth and efficient transmission of data. These components include:

  • Fiber optic cables: These cables are responsible for carrying the data signals in the form of light. With a design that provides high bandwidth and minimizes signal loss, they ensure fast and reliable data transmission.
  • Joining fiber optic cables to other cables or devices is a crucial role of connectors, which also facilitate connection and disconnection when needed. A secure and reliable connection is provided by them, which helps minimize signal loss.
  • Distribution points serve to divide and distribute fiber optic signals among multiple end users. Their purpose is to help each user receive the correct amount of bandwidth while maintaining the overall network performance.

The Role of Optical Fibers in FTTH Technology

Optical fibers are fundamental to FTTH technology. Their design allows these thin strands of glass or plastic to efficiently transmit data signals using light pulses. Because of their high bandwidth capacity, low signal loss, and immunity to electromagnetic interference, optical fibers are perfect for high-speed data transmission.

The fibers are made of a core, which carries the light signals, surrounded by a cladding layer that reflects the light back into the core, preventing signal loss. This design enables optical fibers to carry data over long distances without the signal quality or speed getting worse.

How FTTH cable is Made: From Silica to Fiber

The Art of Fiber Drawing: Creating the Cable’s Core

The first step in the FTTH cable production process is fiber drawing, where the core of the cable is crafted. By pulling and stretching a silica glass preform, this process converts it into a long, thin fiber. During fiber drawing, the diameter of the fiber is carefully controlled to ensure optimal performance. The core’s quality and composition play a crucial role in determining the cable’s ability to transmit data efficiently and accurately.

Applying a Protective Layer: Coating Application for Durability

The process continues with coating application after the fiber has been drawn. This stage involves applying a protective layer, which is called a coating, to the fiber. The coating serves multiple purposes: it acts as a buffer against external factors such as moisture, enhancing the fiber’s long-term durability and reliability. In addition, the coating material is chosen with care to ensure it has the correct mechanical properties, so the fiber will remain intact and protected throughout its lifespan.

Ensuring Quality: Fiber Testing Throughout Production

The quality and performance of the fiber are verified through fiber testing, which is done at different stages of the FTTH cable production process. During testing, the fiber’s physical parameters, like diameter, attenuation, and tensile strength, are measured, and the coating is checked for uniformity and how well it adheres. To guarantee the overall quality and performance of the final FTTH cables, it’s essential that the fiber meets the required standards and specifications, and these tests ensure that.

Stage of Production Parameters Tested
Fiber Drawing Diameter, Attenuation, Tensile Strength
Coating Application Coating Thickness, Uniformity, Adhesion

Testing Parameters at Various Stages of FTTH cable Production: Table

This table provides a summary of the testing parameters that are measured at various stages of the FTTH cable production process. Rigorous testing allows manufacturers to guarantee that each fiber used in the cables meets the required quality standards, ultimately contributing to the high-performance and reliability of FTTH cable systems.

Creating FTTH cable Configurations

For fiber-to-the-home (FTTH) cable production, designing cable configurations is essential for meeting network requirements and getting the best possible performance. Designing the cable involves thinking about things like how much data the network needs to handle, how easy it will be to grow, and how fast the data needs to travel. Efficient deployment and maximized capabilities of their network infrastructure are achieved by companies that tailor cable configurations to their specific needs.

You can choose from a variety of FTTH cable configurations and layouts, and each one has its own advantages and considerations:

  • The main distribution point is connected to each subscriber in a sequential manner in the Daisy Chain Configuration. For areas with a small number of subscribers, this configuration is a cost-effective solution.
  • Star Configuration: In the star configuration, each subscriber is directly connected to the central office or hub. It’s a flexible design that’s easy to maintain, making it ideal for areas with a high population density.
  • In the ring configuration, subscribers are connected to form a circular loop. It offers redundancy and fault tolerance, ensuring uninterrupted service in case of network failures.
  • A tree configuration involves the main distribution point connecting to secondary distribution points, which in turn connect to individual subscribers. This configuration allows the network to grow easily and is often used in areas where there are a lot of subscribers.
  • Mesh Configuration: The mesh configuration provides multiple connections between distribution points, offering high reliability and redundancy. This configuration is often used in very important applications where it’s crucial that the service never stops.

Thinking about the network’s needs and its anticipated future growth is essential when designing FTTH cable configurations. The best configuration to choose depends on things like how many subscribers there are, where they are located, and what kind of service they need, as each configuration has its own advantages and disadvantages.

By carefully evaluating these factors and collaborating with industry experts, companies can develop customized FTTH cable configurations that meet their specific network requirements and deliver optimal performance.

Stranding: Techniques and Machinery

To ensure the strength and durability of FTTH cables, stranding techniques and equipment play a vital role in their production. Depending on what the cable needs to do, different stranding patterns are used, each with its own advantages. The efficiency and quality of cable production depend on choosing the appropriate stranding machinery. Furthermore, the fiber receives extra support and protection from central strength members, which helps make the FTTH cables more reliable.

Various Stranding Patterns Explained

A key element in FTTH cable production is deciding on the best stranding pattern. Depending on the specific characteristics needed for the cable, various stranding patterns are employed, including reverse concentric, SZ stranding, and helical stranding. Each pattern offers unique features that can enhance the cable’s performance in terms of flexibility, strength, and resistance to external factors. To make sure the FTTH cables perform as well as possible and last a long time, stranding patterns are carefully chosen to meet the specific needs of the application.

Selecting Appropriate Stranding Machinery

The FTTH cable production line relies heavily on stranding machinery. The stranding pattern can be precisely formed thanks to this machinery, which also keeps the fibers at the necessary tension and in the correct alignment. The right Fibers in metal tube machinery to choose will depend on things like the cable’s diameter, the speed of production, and how automated you want the process to be. Because advanced stranding machines are more efficient and flexible, manufacturers can produce a large number of cables and also offer customization.

The Function of Central Strength Members

The mechanical properties of FTTH cables are enhanced through the use of central strength members. Stability is provided, tensile strength is improved, and the delicate fiber inside the cable is protected by them. Typically made of materials like aramid or fiberglass, the central strength members act as a backbone, reinforcing the cable structure and offering resistance against external forces. They ensure that FTTH cables can handle the stresses of being installed and that the signal transmission remains intact, making them appropriate for various deployment scenarios.

Fiber Protection: Buffering and Jacketing

Buffering and jacketing are essential processes in the production of FTTH cables because they protect the delicate fiber inside. The fiber is shielded from a variety of potential threats, including moisture, abrasion, and other external factors that could negatively impact its performance and lifespan, thanks to these processes.

Understanding the Buffering Process

The buffering process involves applying a protective layer around the fiber, acting as a barrier against environmental elements. This layer stops water from getting inside, which can cause the signal to be lost or even the fiber to break. Buffering also makes the cable more resistant to rubbing, which lowers the chance of damage when it’s being installed or maintained.

Buffering materials need to stick to the fiber very well and have a low coefficient of friction so that the fiber experiences as little stress as possible. You need to consider things like the environmental conditions the cable will be exposed to and how much protection you want when choosing the right buffering material.

Choosing the Right Materials for Jacketing

Putting an outer layer on to give extra protection to the fiber and the buffering materials is what jacketing involves. Careful selection of the jacketing material ensures strong protection against mechanical stress, impact, UV radiation, and other potential hazards.

The flexibility of the material, how well it resists flames, and whether it can withstand the environmental conditions are all factors considered when selecting jacketing materials. Materials such as polyethylene (PE), polyvinyl chloride (PVC), and low-smoke zero-halogen (LSZH) compounds are commonly used for jacketing. Because each material has its own advantages and disadvantages, the choice will depend on the specific application and what the industry standards are.

How Latest Jacketing Technologies are Applied

FTTH cables now have much better protection thanks to the advancements in jacketing technologies. You get better strength, more flexibility, and enhanced resistance to environmental factors with the latest technologies, which results in better durability and reliability.

An example of an innovative jacketing technology is tight-buffered cables, where each fiber has its own thin plastic buffer, offering excellent protection and flexibility. Another technology is micro-ducts, which use rugged tubing to house multiple fibers, offering high-density and versatility in cable installation.

Specialized jacketing technologies have also been developed to meet the unique requirements of various industries. Armored jackets might be used on cables that are in harsh outdoor environments, for example, to give them better protection against rodents, moisture, and extreme temperatures.

FTTH cables can be tailored to meet the needs of different applications by using the latest jacketing technologies, which guarantees the best performance, a long lifespan, and reliability.

Operations on the FTTH cable Production Line

For a smooth and streamlined manufacturing process in the FTTH cable production line, efficient operations are essential. Each step in the production line plays a vital role in producing high-quality fiber optic cables that enable high-speed internet connectivity. To achieve optimal efficiency, various machinery and equipment are utilized.

Preparing the raw materials, including the silica used for fiber drawing, is the first step in the manufacturing process. The process then moves on to fiber drawing, where the cable’s core is carefully made to achieve the desired specifications. After that comes coating application, which makes sure the fiber is durable and protected.

Because quality is so important, rigorous fiber testing is carried out at every stage of the production line to ensure the cables meet the highest standards. Testing for things like attenuation, bandwidth, and how much signal is lost is part of this.

For the FTTH cable production line to work well, efficiency is very important. Optimizing the use of machinery and equipment allows manufacturers to reduce production time and costs and increase the amount they produce. Additionally, efficient processes contribute to the overall quality of the cables.

It can be complex to manufacture these cables, as the process involves many different stages and components. But, if manufacturers use efficient operations and constantly try to make things better, they can improve how well and effectively their FTTH cable production line works.

The following table summarizes the key machinery used in the FTTH cable production line and what each machine does in the manufacturing process, to give you a complete understanding of how it all works:

Machine Role
Fiber Drawing Machine Produces the fiber optic cable core by pulling and stretching the silica material.
Coating Machine Applies a protective coating to the fiber optic cable, ensuring durability and resistance to external factors.
Fiber Testing Equipment Conducts various tests on the fiber optic cable to ensure quality and performance.
Spooling Machine Winds the finished fiber optic cable onto spools for packaging and distribution.
Jacketing Machine Applies an outer jacket to the fiber optic cable, providing additional protection and enhancing its handling.

Using advanced machinery and technologies allows manufacturers to make their production line operations more streamlined, enhance efficiency, and deliver high-quality FTTH cables that meet the rising demand for high-speed internet connectivity.

Cutting-Edge Technologies for FTTH cable Manufacturing

Efficiency and quality in the constantly evolving field of FTTH (Fiber to the Home) cable manufacturing are greatly improved by advanced technologies. Because more and more people want high-speed data transmission, automation, the use of AI, and fiber coloring machines have completely changed how these cables are made, leading to new ideas and better products.

Using Automation to Produce Fiber Optic cables

Automation has led to a major transformation in the manufacturing of fiber optic cables. With advanced machinery and robotics, the manufacturing process can be controlled with great precision, ensuring consistent quality and minimizing errors. Automation makes it possible to produce more cables in less time and with greater accuracy, which ultimately saves money and leads to happier customers.

AI in Quality Control for cable Manufacturing

FTTH cable manufacturers can achieve accuracy and reliability like never before by using artificial intelligence (AI) in their quality control process. AI algorithms can analyze production data in real-time, identifying any deviations or anomalies that may affect the quality of the cables. This way of checking quality helps to reduce mistakes, make production more efficient, and ensure that only the best FTTH cables are sold.

How Fiber Coloring Machines Work

The way FTTH cables are manufactured has been revolutionized by the introduction of fiber coloring machines, which provide enhanced customization options. With fiber coloring machines, optical fiber strands can be color-coded, which makes it easy to identify them and manage the cables efficiently during installation and maintenance. By using this technology, manual color coding is no longer needed, which reduces the chance of errors and makes the entire process of deploying cables more efficient.

Ensuring Quality: Testing and Quality Assurance in Fiber Optics

For fiber optics, it’s extremely important to make sure the quality is as high as possible. Throughout the whole production process, strict testing and quality assurance steps are taken to make this happen. Making sure fiber optic cables are reliable and consistent depends heavily on standardized testing protocols.

The Importance of Standardized Testing Protocols

Standardized testing protocols are established to ensure that every fiber optic cable meets the required quality standards. These protocols detail the specific testing procedures and criteria that must be followed at each stage of the production process. Following these protocols allows manufacturers to find and fix any potential problems, making sure that only the highest quality cables are given to customers.

How OTDR is Used for Quality Checks

Quality checks on fiber optic cables are incomplete without the use of Optical Time-Domain Reflectometer (OTDR). By sending out light pulses, OTDR, a testing instrument, measures the loss and reflection of signal along an optical fiber. OTDR traces are analyzed by technicians to find problems like bending in the fiber, loss of signal, or damage to the connectors. Finding the exact location of any problems and taking steps to fix them is made possible, which ensures the cable’s overall quality and performance.

The Importance of Maintaining Strict Quality Assurance Standards

Quality assurance standards are maintained throughout the entire production process to ensure consistent and reliable performance of fiber optic cables. The selection of materials, the processes used to manufacture the cables, and the testing of the final product are all aspects covered by these standards. Following these strict standards allows manufacturers to ensure that their products meet the highest quality and performance levels demanded by the industry.

How FTTH cables are Packaged and Distributed

In this section, we will look at the final stages of Fiber coloring machine production, including how they are packaged and distributed. After the cables have been manufactured, it’s important to package them correctly and efficiently to make it easier to deploy and install them. In addition, using packaging that protects them is crucial for keeping the delicate fiber optic cables safe during transportation and storage. It’s essential to have efficient logistics and supply chain management to ensure that FTTH products are delivered to customers in a timely way and effectively meet their connectivity needs.

Techniques for Efficient cable Spooling

Smooth and convenient installation of FTTH cables depends on using efficient cable spooling techniques. By providing a practical and organized way to store and transport cables, cable spools reduce the risk of tangling or damage. By employing optimized cable spooling techniques, cable installers can save time and effort during the deployment process. Properly spooled cables also enhance the overall aesthetics of the installation, ensuring a neat and professional appearance.

Protective Packaging Solutions for Fiber Optic cables

Using effective protective packaging solutions is essential to keep the delicate fiber optic cables safe when they are being transported and stored. The packaging should provide cushioning, absorb shocks, and resist external factors such as moisture, dust, and physical impact. The use of high-quality packaging materials and techniques ensures that the fiber optic cables will arrive at their destination in optimal condition, ready to be installed by manufacturers. This not only keeps the cables in good condition but also makes customers happier by reducing the chance of damage or the cables not working as well as they should.

Logistics and Supply Chain Management for FTTH Products

Efficient logistics and supply chain management are crucial for the successful delivery of FTTH products to customers. This means carefully planning how the cables will be transported, stored, and distributed so that they arrive on time and reliably. Managing the supply chain effectively helps minimize delays and optimize the flow of products, reducing costs and improving customer service..

In Conclusion

This ultimate guide to the FTTH cable production line has provided a detailed look at the process of manufacturing fiber optic cables for high-speed internet connectivity, in conclusion. We have stressed the importance of the FTTH cable production line in making fast and reliable data transmission a reality throughout this article.

The ability to have seamless communication, streaming, and online activities through high-speed internet connectivity depends on the critical role played by fiber optic cables. The step-by-step process of FTTH cable production, from fiber drawing to buffering and jacketing, ensures the durability and quality of these cables.

Automation and AI integration are examples of advanced technologies that have completely changed the manufacturing process, making it more efficient and accurate. Furthermore, the reliability and performance of fiber optics are guaranteed by standardized testing protocols and strict quality assurance standards.

The final stages of FTTH cable production are packaging and distribution, and these ensure that these essential cables are deployed efficiently and protected during transportation. The increasing global demand for high-speed internet connectivity can only be met thanks to the expertise and precision involved in the FTTH cable production line.
