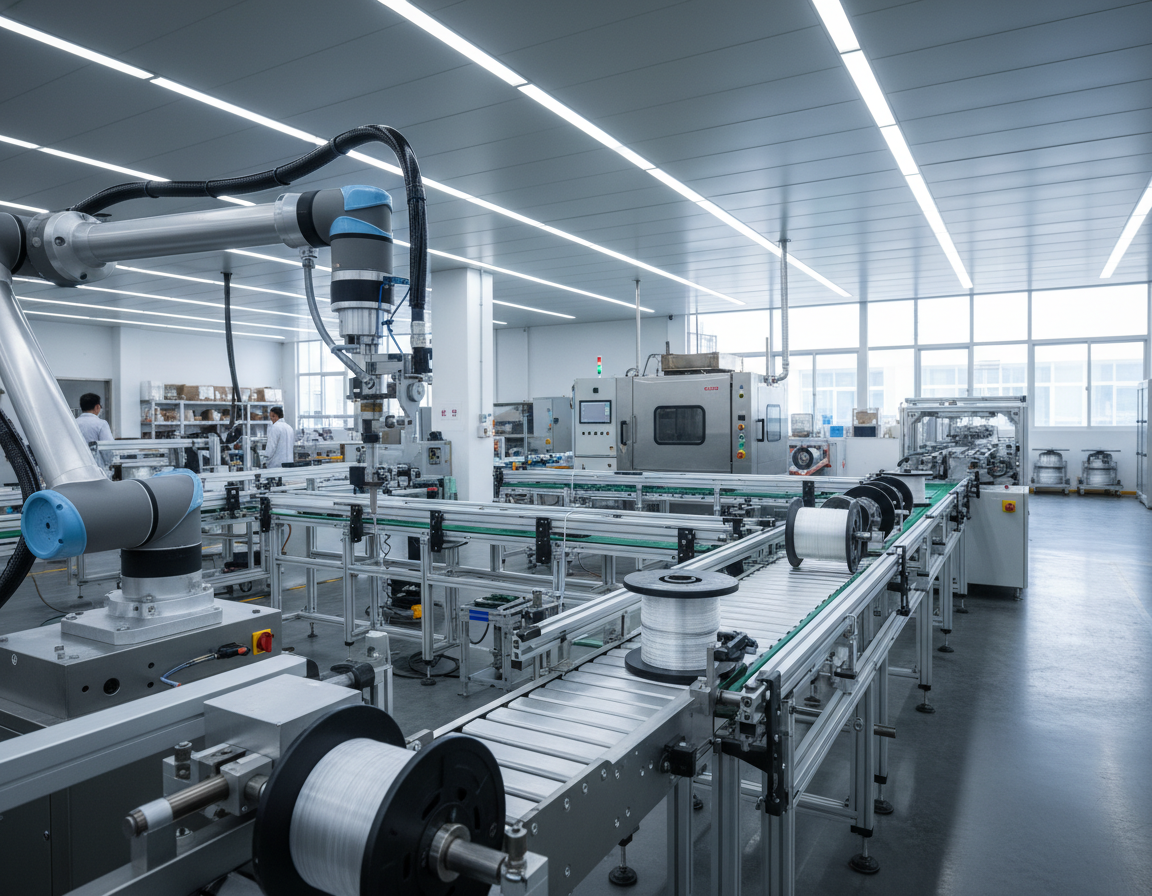

SZ Stranding Line
Fiber Draw Tower
Fiber Ribbone Line
Shanghai Weiye Optic Fiber Communication Equipment Co (www.weiye-ofc.com) provides automated FTTH cable production line systems for the United States market. Their turnkey FTTH Cable Production Line for High-Speed Fiber Optics brings together machines and control systems. It produces drop cables, indoor/outdoor cables, and high-density units for telecom, data centers, and LANs.
This high-performance FTTH cable making machinery delivers measurable business value. It provides higher throughput and consistent optical performance with low attenuation. It also aligns with IEC 60794 and ITU-T G.652D / G.657 standards. Customers see reduced labor costs and material waste through automation. Full delivery services include installation and operator training.
The FTTH cable production line package incorporates fiber draw tower integration, a fiber secondary coating line, together with a fiber coloring machine. This system further contains SZ stranding line, fiber ribbone line, compact fiber unit assembly, cable sheathing line, armoring modules, together with testing stations. Control together with power specs typically use Siemens PLC with HMI, operating at 380 V AC ±10% as well as modular power consumption up to roughly 55 kW depending on configuration.
Shanghai Weiye’s customer support model provides on-site commissioning by experienced engineers, remote monitoring, and rapid troubleshooting. It also provides lifetime technical support and operator training. Clients are commonly expected to coordinate engineer logistics as part of standard supplier practice when ordering from FTTH cable machine suppliers.
Key Takeaways
- FTTH cable production line solutions meet growing U.S. demand for fiber-to-the-home deployments.
- Turnkey systems from Shanghai Weiye combine automation, standards compliance, and operator training.
- Modular configurations use Siemens PLC + HMI and operate near 380 V AC with up to ~55 kW power profiles.
- Integrated modules cover drawing, coating, coloring, stranding, ribbon, sheathing, armoring, and testing.
- Advanced FTTH cable machinery reduces labor, waste, and improves optical consistency.
- Technical support includes on-site commissioning, remote diagnostics, and lifetime technical assistance.
Understanding FTTH Cable Line Technology
The fiber optic cable manufacturing process for FTTH demands precise control at every stage. Cable makers use integrated lines that combine drawing, coating, stranding, together with sheathing. This approach boosts yield and speeds up market entry. The line meets the needs of both residential as well as enterprise deployments in the United States.
Below, we review the core components and technologies driving modern manufacturing. Each module must operate with precise timing and reliable feedback. The choice of equipment affects product quality, cost, and flexibility for various cable designs.
Core Components In Modern Fiber Optic Cable Manufacturing
Secondary coating lines apply dual-layer coatings, often 250 µm, using high-speed UV curing. Tight buffering and extrusion systems provide 600–900 µm jackets for indoor and drop cables.
SZ stranding lines use servo-controlled pay-off and take-up units to handle up to 24 fibers with accurate lay length. Fiber coloring machines rely on multi-channel UV curing to mark fibers to industry color codes.
Sheathing as well as extrusion stations produce PE, PVC, or LSZH jackets. Armoring units add steel tape or wire for outdoor protection. Cooling troughs and UV dryers stabilize profiles before testing.
How Production Systems Evolved From Traditional To Advanced
Early plants used manual as well as semi-automatic modules. Lines were separate, using hand transfers and basic controls. Current facilities shift toward PLC-controlled, synchronized systems featuring touchscreen HMIs.
Remote diagnostics as well as modular turnkey setups support rapid changeover between simplex, duplex, ribbon, and armored formats. This move supports automated fiber optic cable line output together with lowers labor dependence.
Key Technologies Powering Industry Innovation
High-precision tension control, based on servo pay-off and take-up, keeps geometry stable during high-speed runs. Multi-zone temperature control using Omron PID and precision heaters ensures consistent extrusion quality.
High-speed UV curing and water cooling accelerate profile stabilization while reducing energy use. Integrated inline testers measure attenuation, geometry, tensile strength, crush resistance, and aging data.
| Process | Typical Unit | Benefit |
|---|---|---|
| Fiber drawing | Draw tower with automated tension feedback | Stable core diameter and reduced attenuation |
| Coating stage | Dual-layer UV coaters | Consistent 250 µm coating for durability |
| Fiber coloring | Multi-channel coloring machine | Reliable color identification for field work |
| Stranding | Servo-controlled SZ stranding line (up to 24 fibers) | Stable lay length for ribbon and loose tube designs |
| Sheathing & extrusion | Multi-zone heated energy-saving extruders | PE/PVC/LSZH jackets with tight dimensional control |
| Cable armoring | Steel tape or wire armoring units | Stronger mechanical protection for outdoor applications |
| Profile cooling & curing | Water troughs and UV dryers | Fast profile stabilization and reduced defects |
| Inline testing | Inline attenuation and geometry measurement | Live quality control and compliance reporting |
Compliance with IEC 60794 and ITU-T G.652D/G.657 variants is standard. Manufacturers typically certify to ISO 9001, CE, and RoHS. These credentials support diverse applications, from FTTH drop cable production to armored outdoor runs and data center high-density solutions.
Choosing cutting-edge fiber optic production equipment and modern manufacturing equipment helps firms meet tight tolerances. Such equipment selection enables efficient automated fiber optic cable production and positions companies to deliver on scale and quality.
Essential Equipment In Fiber Secondary Coating Line Operations
The secondary coating stage is critical, giving drawn optical fiber its final diameter and mechanical strength. It prepares the fiber for stranding and cabling. A well-tuned fiber secondary coating line controls coating thickness, adhesion, and surface quality. This protects the glass during handling.
Producers aiming for high-yield, fast-cycle fiber optic cable production must match material, tension, together with curing systems to process requirements.
High-speed secondary coating processes rely on synchronized pay-off, coating heads, and UV ovens. Modern systems achieve high production rates while minimizing excess loss. Precise tension control at pay-off and winder stages prevents microbends and ensures consistent coating thickness across long runs.
Single together with dual layer coating applications meet different market needs. Single-layer setups offer basic mechanical protection and a simple optical fiber cable manufacturing machine footprint. Dual-layer lines combine a harder inner layer with a softer outer layer to improve microbend resistance as well as stripability. This helps when fibers are prepared for connectorization.
Temperature control as well as curing systems are critical to final fiber performance. Multi-zone heaters as well as Omron PID controllers guide screw/barrel extruders to stable melt flow for LSZH or PVC compounds. UV curing ovens as well as water trough cooling stabilize the coating profile and reduce variation in excess loss; targets for high-output quality single-mode fiber often aim for ≤0.2 dB/km at 1550 nm after extrusion.
Key components from trusted suppliers improve uptime and precision in an optical fiber cable production machine. Extruders such as 50×25 models, screws and barrels from Jinhu, and bearings from NSK are common. Motors from Dongguan Motor, inverters by Shenzhen Inovance, and PLC/HMI platforms from Siemens or Omron provide robust control and monitoring for continuous runs.
Operational parameters guide preventive maintenance and process tuning. Typical pay-off tension ranges from 0.4 to 1.5 N for fiber reels, while radiation and curing speeds are adjusted to material type and coating thickness. A preventive maintenance cycle around six months keeps secondary coating processes stable and supports reliable high-speed fiber optic cable production.
Fiber Draw Tower And Optical Preform Processing
The fiber draw tower is the core of optical fiber drawing. This system softens a glass preform in a multi-zone furnace. Then, it pulls a continuous strand featuring precise diameter control. That stage sets the refractive-index profile as well as attenuation targets for downstream processes.
Process control on the tower relies on real-time diameter feedback as well as tension management. This prevents microbends. Cooling zones together with closed-loop systems keep geometry stable during the optical fiber cable line output process. Advanced towers log metrics for traceability and rapid troubleshooting.
Output output quality supports single-mode fibers such as ITU-T G.652D and bend-insensitive types like G.657A1/A2 for FTTH networks. Draws routinely meet stringent loss figures. Excess loss after coating is kept at or below 0.2 dB/km for high-performance single-mode fiber.
Integration featuring secondary coating lines requires careful pay-off control. A synchronized handoff preserves alignment together with tension as the fiber enters coating, coloring, or ribbon count stations. That transfer step supports the optical fiber drawing step feeds smoothly into cable assembly.
Equipment vendors such as Shanghai Weiye offer turnkey options. These include testing stations for attenuation, tensile strength, and geometric tolerances. These integrated features help manufacturers scale toward high-speed fiber optic cable production while maintaining ISO-level output quality checks.
| Feature | Function | Typical Target |
|---|---|---|
| Multi-zone heating furnace | Even preform heating for stable glass viscosity | Consistent draw speed and refractive profile |
| Live diameter control | Control core/cladding geometry while reducing attenuation | ±0.5 μm tolerance |
| Managed tension and cooling | Reduce microbends and maintain fiber strength | Defined tension by fiber type |
| Automatic pay-off integration | Secure handoff to secondary coating and coloring | Synced feed rates for zero-slip transfer |
| Inline test stations | Validate attenuation, tensile strength, geometry | ≤0.2 dB/km loss after coating for single-mode |
Advanced SZ Stranding Line Technology In Cable Assembly
The SZ stranding method creates alternating-direction lays that cut axial stiffness and boost flexibility. This makes it ideal for drop cables, building drop assemblies, and any application that needs a flexible core. Manufacturers moving toward automated fiber optic cable manufacturing use SZ approaches to meet tight bend and axial tolerance specs.
Precision in the stranding stage protects optical performance. Modern precision stranding equipment employs servo-driven carriers, rotors, as well as modular pay-off racks that accept up to 24 fibers. These systems deliver precise lay-length control and allow quick reconfiguration for different cable types.
Automated tension control systems keep fibers within safe limits from pay-off to take-up. Servo pay-offs, capstans, and haul-off units maintain constant linear speed and target tensions. Typical fiber pay-off tension ranges from 0.4 to 1.5 N while reinforcement pay-offs run between 5 and 20 N.
Integration with a downstream fiber cable sheathing line streamlines production and reduces handling. Extrusion of PE, PVC, or LSZH jackets at 60–150 m/min syncs with stranding through a Siemens PLC. Cooling troughs and UV dryers stabilize the jacket profile right after extrusion to prevent ovality and reduce mechanical stress.
Optional reinforcement and armoring modules add strength without compromising flexibility. Reinforcement pay-off racks accept steel wires or FRP rods. Armoring units wrap steel tape or wire with adjustable tension to meet specific mechanical ratings.
Built-in quality control prevents defects before cables leave the line. In-line geometry checks, fiber strain monitors, as well as optical attenuation measurement detect excess loss or mechanical strain caused by stranding or sheathing. These checks support continuous automated fiber optic cable manufacturing workflows and cut rework.
The combination of a robust sz stranding line, high-end precision stranding equipment, and a synchronized fiber cable sheathing line provides a scalable solution for manufacturers. This combination raises throughput while protecting optical integrity and mechanical performance in finished cables.
Fiber Coloring Machine And Identification Systems
Coloring as well as identification are critical in fiber optic cable production. Accurate color application minimizes splicing errors and accelerates field work. Advanced equipment combines fast coloring with inline inspection, ensuring high throughput as well as low defect rates.
Today’s high-speed coloring technology supports multiple channels and quick curing. Machines can operate 8 to 12 color channels simultaneously, aligning with secondary coating lines. UV curing at speeds over 1500 m/min ensures color and adhesion stability for both ribbon and counted fibers.
Below, we discuss standards and coding prevalent in telecom networks.
Color coding adheres to international telecom standards for 12-color cycles and ribbon schemes. Such compliance aids technicians in installation and troubleshooting. Consistent coding significantly reduces field faults and accelerates network deployment.
Quality control integrates advanced fiber identification systems into production lines. In-line cameras, spectrometers, and sensors detect color discrepancies, poor saturation, and coating flaws. The PLC/HMI interface alerts to issues and can pause the line for correction, safeguarding downstream processes.
Machine specifications are vital for uninterrupted runs and material compatibility. Leading equipment accepts UV-curable pigments as well as inks, compatible with common coatings together with extrusion steps. Pay-off reels accommodating 25 km or 50 km spools ensure continuous operation on high-volume lines.
Supplier support is essential for US manufacturers adopting these technologies. Shanghai Weiye and other established vendors offer customizable channels, remote diagnostics, and onsite training. Such supplier support reduces ramp-up time and enhances the reliability of fiber optic cable production equipment.
Fiber Solutions For Metal Tube Production
Metal tube and metal-armored cable assemblies provide robust protection for fiber lines. They are ideal for direct-buried and industrial applications. The controlled routing of coated fibers into metal tubes prevents microbends, ensuring optical performance remains within specifications.
Processes depend on precision filling and centering units. These modules, in conjunction with fiber optic cable manufacturing equipment, ensure concentric placement and controlled tension during insertion.
Armoring steps involve the rely on of steel tape or wire units featuring adjustable tension and wrapping geometry. That method benefits armored fiber cable production by preventing compression of fiber elements. This line additionally keeps reinforcement wires at typical diameters of ø0.4–ø1.0 mm.
Coupling armoring with downstream sheathing together with extrusion lines results in a finished outer jacket made of PE, PVC, or LSZH. An optical fiber cable manufacturing machine must handle pay-off reels sized for reinforcement and align featuring sheathing tolerances.
Quality checks include crush, tensile, and aging tests to confirm the armor does not exceed allowable stress on fibers. Standards-based testing ensures long-term reliability in field conditions.
Turnkey solutions from established manufacturers integrate metal tube handling featuring SZ stranding and sheathing lines. These solutions include operator training together with maintenance schedules to sustain throughput on fiber optic cable manufacturing equipment.
Buyers should consider compatibility with armored fiber cable line output modules, ease of changeover, together with service support for field upgrades. Those points reduce downtime together with protect investment in an optical fiber cable manufacturing machine.
Fiber Ribbon Line And Compact Fiber Unit Production
Current data networks require efficient assemblies that pack more fibers into less space. Manufacturers employ a fiber ribbon line to create flat ribbon assemblies for rapid splicing. This method relies on parallel processes as well as precise geometry to meet the needs of MPO trunking together with backbone cabling.
Advanced equipment ensures accuracy as well as speed in manufacturing. A fiber ribbone line typically integrates automated alignment, epoxy bonding, precise curing, as well as shear/stacking modules. In-line attenuation together with geometry testing reduce rework, maintaining high yields.
Compact fiber unit production focuses on tight tolerances and material choice. Extrusion and buffering create compact fiber unit constructions with typical tube diameters from 1.2 to 6.0 mm. Common materials include PBT, PP, and LSZH for durability and flame performance.
High-density cable solutions aim to enhance rack together with tray efficiency in data centers. By increasing fiber count per unit area, these designs shrink cable diameter and simplify routing. They are compatible with MPO trunking as well as high-count backbone systems.
Production controls and speeds are critical for throughput. Modern lines can reach up to 800 m/min, depending on configuration. PLC and HMI touch-screen control enable quick parameter changes and synchronization across multiple lines.
Quality and customization remain key differentiators for manufacturers like Shanghai Weiye. Electronic monitoring, customizable ribbon counts, stacking patterns, and turnkey integration with sheathing and testing stations support bespoke high-speed fiber cable production line requirements.
| Feature | Ribbon Line | Compact Unit | Benefit To Data Centers |
|---|---|---|---|
| Typical operating speed | As high as 800 m/min | Typically up to 600–800 m/min | Greater throughput for large-scale deployments |
| Main production steps | Alignment automation, epoxy bonding, and curing | Extrusion, buffering, and tight-tolerance winding | Stable geometry and reduced insertion loss |
| Material set | Specialty tapes and bonding resins | PBT, PP, plus LSZH buffer and jacket materials | Durable performance and safety compliance |
| Inspection | In-line attenuation and geometry checks | Tension monitoring and dimensional control | Lower failure rates and faster rollout |
| System integration | Integrated sheathing with splice-ready stacking | Modular units for high-density cable solutions | More efficient MPO trunk and backbone deployment |
Optimizing High-Speed Internet Cable Production
Efficient high-speed fiber optic cable manufacturing relies on precise line setup and strict process control. To meet US market demands, manufacturers must adjust pay-off reels, extrusion dies, together with tension systems. This helps ensure optimal output for flat, round, simplex, and duplex FTTH profiles.
Cabling Systems Used In FTTH Applications
FTTH cabling systems must accommodate various drop cable types while maintaining consistent center heights, like 1000 mm. Production lines for FTTH include 2- and 4-reel pay-off options. They also feature reinforcement pay-off heads for enhanced strength.
Extruder models, such as a 50×25, control jacket speeds between 100 and 150 m/min, depending on LSZH or PVC. Extrusion dies for 2.0×3.0 mm profiles guarantee reliable jackets for field installation.
Quality Assurance In Fiber Pulling Process
Servo-controlled pay-off and take-up units regulate fiber tension between 0.4–1.5 N to prevent excess loss. Inline systems conduct fiber pull testing, attenuation checks, mechanical tensile tests, and crush and aging cycles. This testing regime verify performance.
Key control components include Siemens PLCs as well as Omron PID controllers. Motors from Dongguan Motor as well as inverters from Shenzhen Inovance ensure stable operation as well as easier maintenance.
Meeting Industry Standards For Optical Fiber Drawing
A well-tuned fiber draw tower produces fibers that meet ITU-T G.652D and G.657 standards. The goal is to achieve ≤0.2 dB/km excess loss at 1550 nm for high-quality single-mode fiber.
Choosing the best equipment for FTTH cables involves evaluating speed, customization, warranty, as well as local after-sales support. Top FTTH cable production line manufacturers deliver turnkey layouts, remote monitoring, and operator training. That reduces ramp-up time for US customers.
Conclusion
Advanced FTTH cable making machinery integrates various components. These include fiber draw towers, secondary coating, coloring lines, SZ stranding, as well as ribbon units. This system additionally contains sheathing, armoring, together with automated testing for consistent fast-cycle fiber line output. A complete fiber optic cable production line is designed for FTTH and data center markets. This system enhances throughput, keeps losses low, as well as maintains tight tolerances.
For U.S. manufacturers together with system integrators, partnering featuring reputable suppliers is key. They should offer turnkey systems using Siemens or Omron-based controls. This incorporates on-site commissioning, remote diagnostics, together with lifetime technical support. Companies like Shanghai Weiye Optic Fiber Communication Equipment Co provide integrated solutions. Such solutions simplify automated fiber optic cable manufacturing as well as reduce time to production.
Technically, ensure line configurations adhere to IEC 60794 and ITU-T G.652D/G.657 standards. Verify tension together with curing settings to meet excess loss targets, such as ≤0.2 dB/km at 1550 nm. Adopt preventive maintenance cycles of roughly six months for reliable 24/7 operation. When planning a new FTTH cable production line, first evaluate required cable types. Collect product drawings as well as standards, request detailed equipment specs and turnkey proposals, and schedule engineer commissioning together with operator training.
